Description
Product Model:

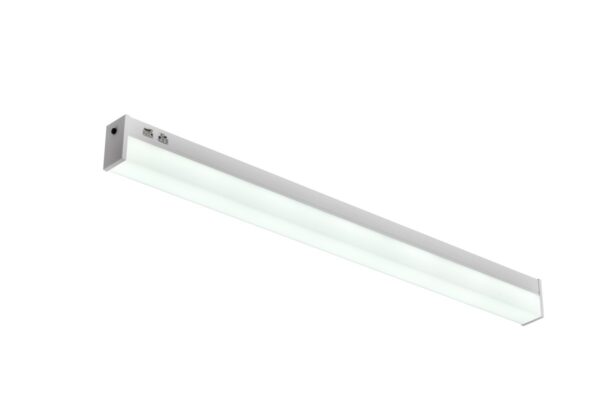

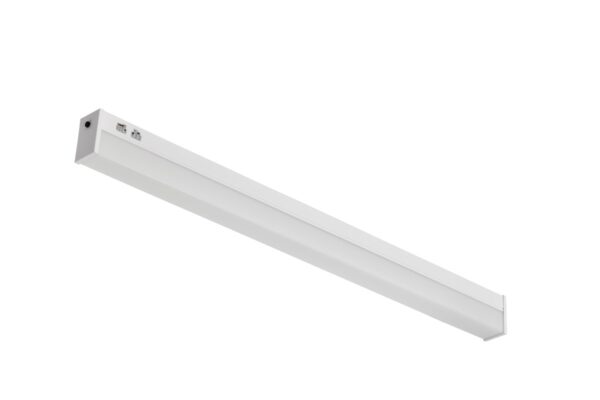

HG-L246
Title:
PENDANTS
Description:

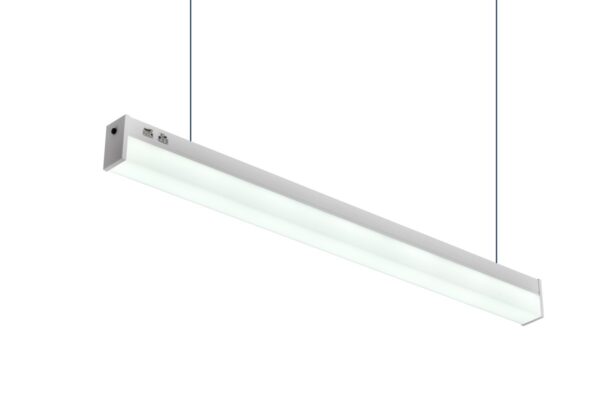

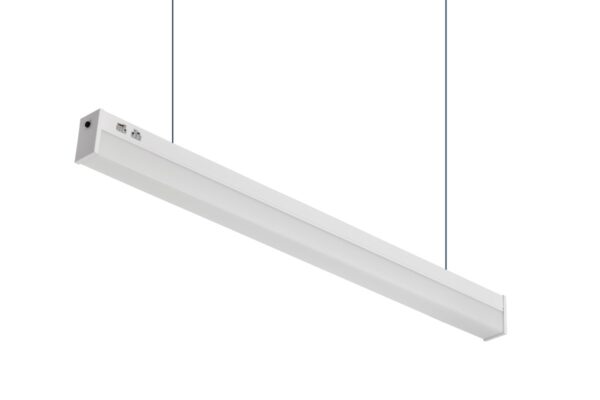

The new pendant lighting is a unique design by halcon lighting, it is very cost-effective and energy-efficient pendant lighting solution.The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1’x4′ suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.
Product Category:
LINEAR FIXTURE (STRIP, WRAP)
Size:
2ft, 4ft, 8ft
Watts(W):
13W/25W/50W/75W/100W
Lumen(lm):
1495 lm-11500 lm
CCT(K):
3000K/3500K/4000K/5000K
Qualifications:
DLC Standard/DLC Premium.
ETL/CETL List
Design and Installation – Feactures:
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Design and Installation – Controls Features:
- Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Design and Installation – Accessories:
SENSOR control, Emergency kits, suspension kits.
Specification – Size:
374x50x100mm, 574x50x100mm, 1174x50x100mm, 1474x50x100mm, 1474x50x100mm, 1774x50x100mm, 2474x50x100mm
Specification – Nominal Wattage:
6.5W/10W/13W, 13W/19W/25W, 25W/38W/50W, 35W/55W/65W, 50W/75W/100W
Specification – InputVoltage:
AC 120-277V, 120-347V
Specification – Lumen Delivered:
1495 lm, 2875 lm, 5750 lm, 7475 lm, 11500 lm
Specification – Nominal Efficacy:
115 lm/w
Specification – CCT:
3000K/3500K/4000K/5000K
Specification – CRI:
>80
Specification – Power Factor:
>0.9
Specification – Dimming:
0-10V
Specification – Operating Temperature:
: -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Specification – Warranty:
5 Years
Specification Products:
HG-L242S-131F, HG-L242S-252F, HG-L242S-504F, HG-L242S-756F, HG-L242S-1008F
