Description

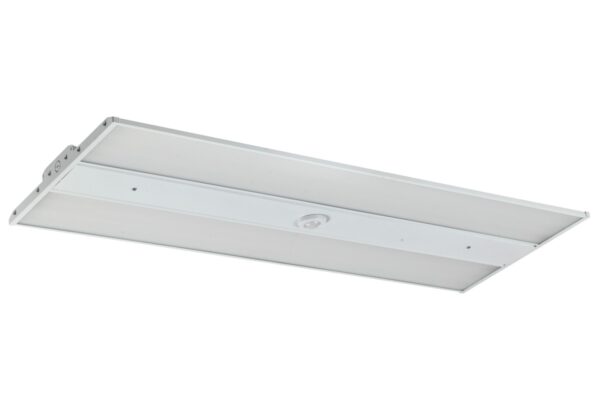

Product Model:
HG-L225C
Title:
LED Iinear high bay
Description:

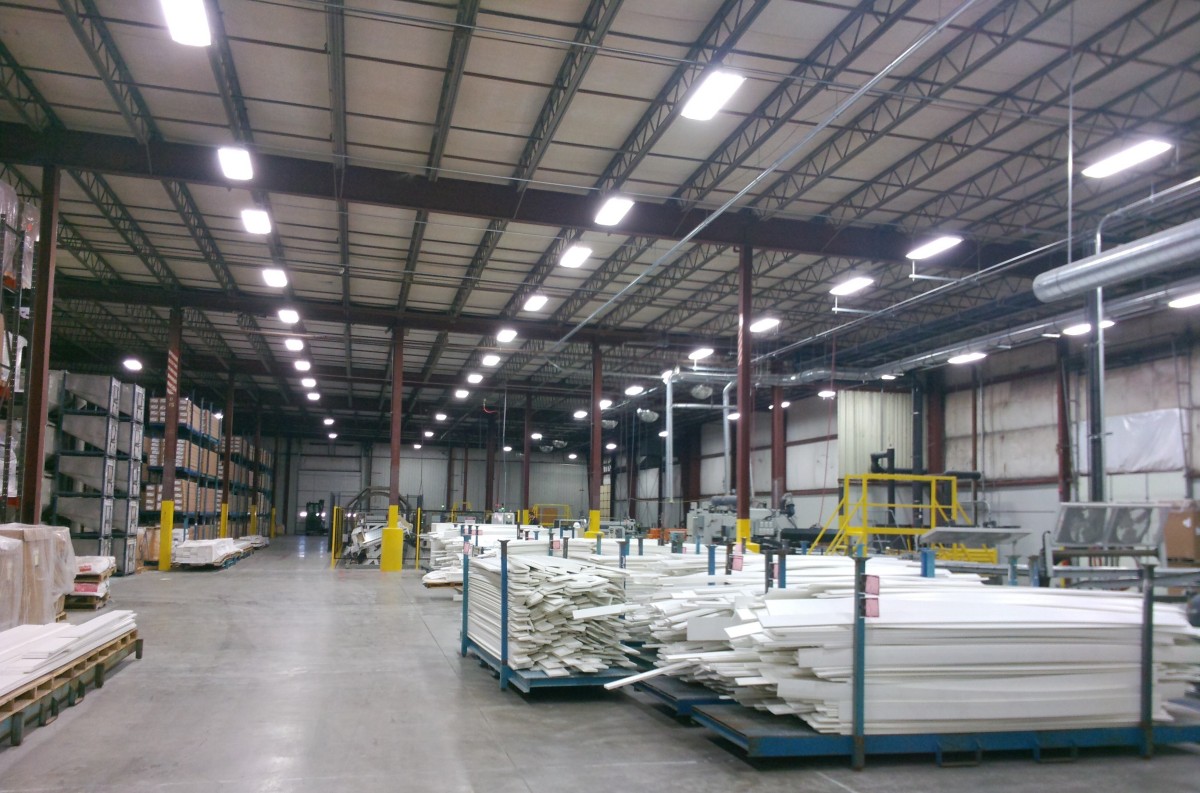

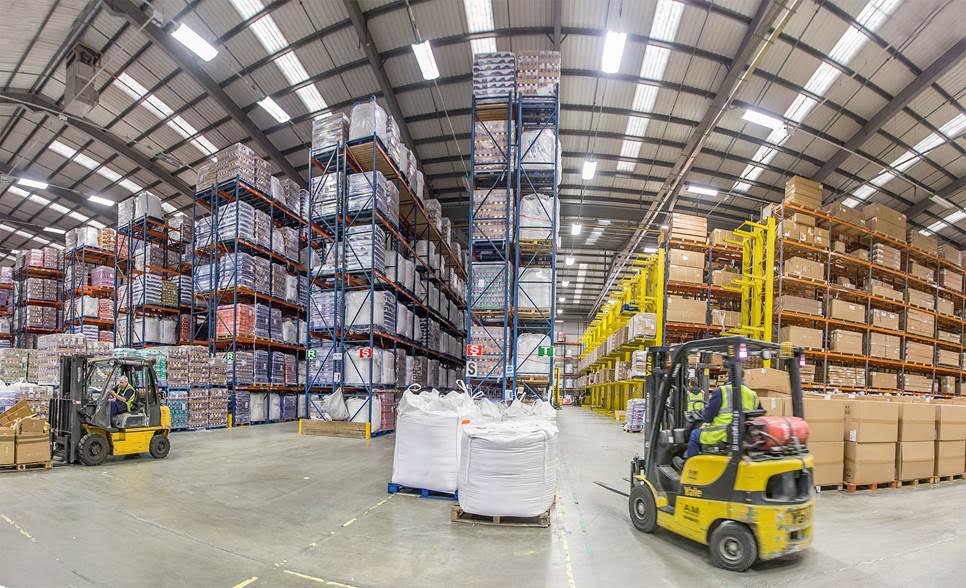

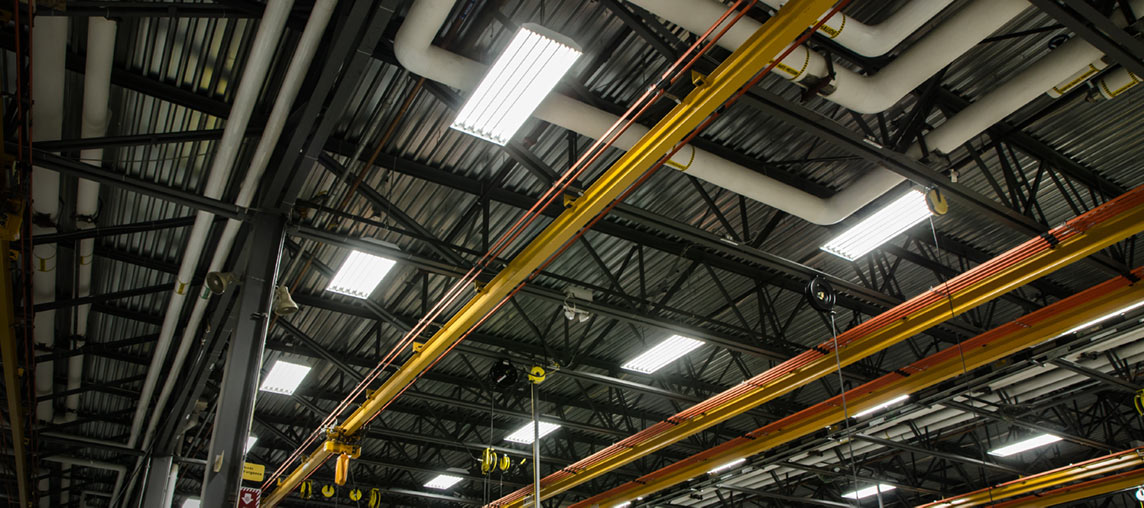

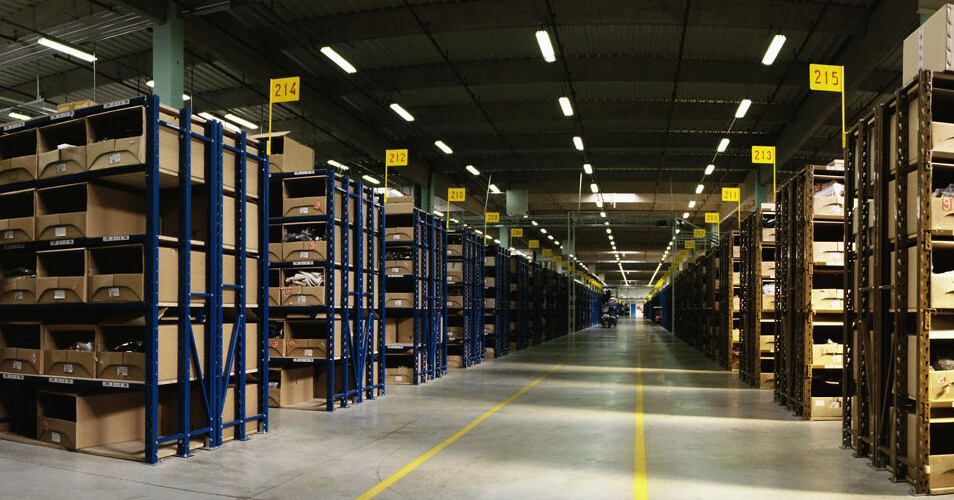

Halcon new slim Highbay Linear can be customized with CCT selectable & wattage selectable, used for high ceiling applications such as warehouses, distribution centers, manufacturing facilities and big box retailers. This high bay can be installed with bluetooth sensor and emergency, it is DLC NLC qualified, making it attractive for large utility rebates.
Product Category:
HIGH BAYS
Size:
2ft, 4ft
Watts(W):
80W, 100W, 140W, 165W, 225W, 325W
Lumen(lm):
10400 lm-42250 lm
CCT(K):
3000K/3500K/4000K/5000K
Qualifications:
DLC Standard/DLC Premium.
ETL/CETL List
Design and Installation – Feactures:
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Design and Installation – Controls Features:
- Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Design and Installation – Accessories:
SENSOR control, Emergency kits, suspension kits.
Specification – Size:
630x320x52.5mm, 606x320x52.5mm, 606x320x52.5mm, 604x440x52.5mm, 606x440x52.5mm, 1165x320x52.5mm, 1165x320x52.5mm, 1165x440x52.5mm
Specification – Nominal Wattage:
80W,100W,140W,165W,220W,165W,225W,325W
Specification – InputVoltage:
AC 120-277V, 120-347V
Specification – Lumen Delivered:
10400 lm, 13000 lm, 18200 lm, 21450 lm, 28600 lm, 29250 lm, 42250 lm
Specification – Nominal Efficacy:
130 lm/w
Specification – CCT:
3000K/3500K/4000K/5000K
Specification – CRI:
>80
Specification – Power Factor:
>0.9
Specification – Dimming:
0-10V
Specification – Operating Temperature:
: -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Specification – Warranty:
5 Years
Specification Products:
HG-L225C-80W/2ft, HG-L225C-100W/2ft, HG-L225C-140W/2ft, HG-L225C-165W/2ft, HG-L225C-220W/2ft, HG-L225C-165W/4ft, HG-L225C-225W/4ft, HG-L325W/4ft
