Description
Product Model:
HG-L206
Title:
LINEAR FIXTURE (STRIP, WRAP)
Description:

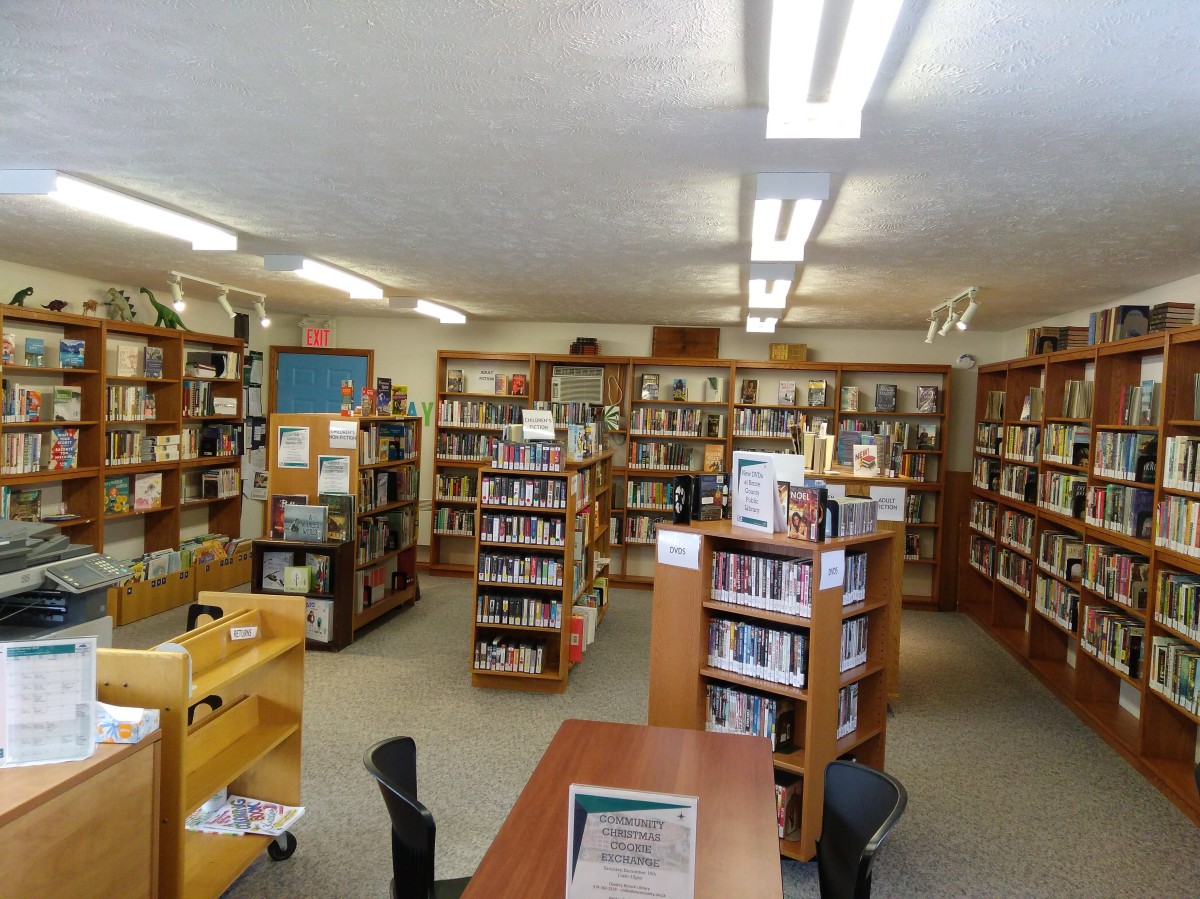

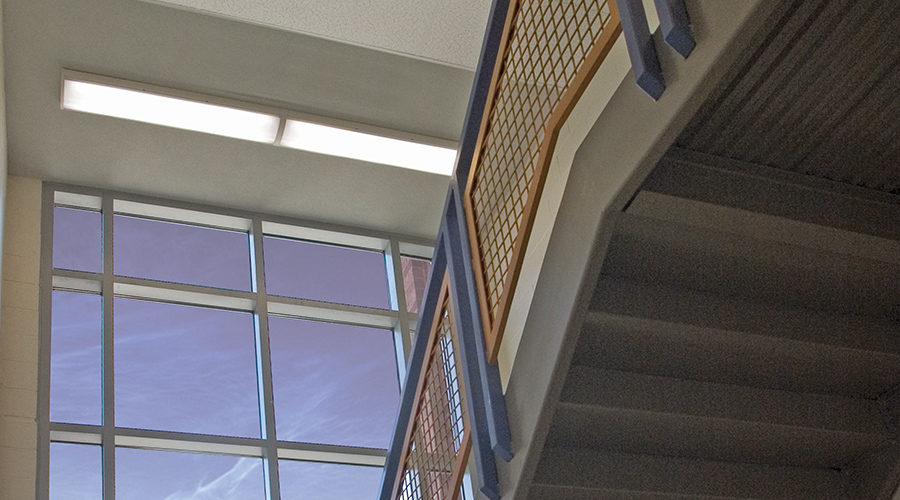

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2′, 4′ and 8′), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls.With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.
Product Category:
LINEAR FIXTURE (STRIP, WRAP)
Size:
2ft, 4ft, 8ft
Watts(W):
20W, 30W, 40W, 60W, 80W
Lumen(lm):
2340 lm-11050 lm
CCT(K):
3000K/3500K/4000K/5000K
Qualifications:
DLC Standard/DLC Premium.
ETL/CETL List
Design and Installation – Feactures:
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Design and Installation – Controls Features:
- Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Design and Installation – Accessories:
SENSOR control, Emergency kits, suspension kits.
Specification – Size:
606x115x91mm, 1206x115x91mm, 2438x115x91mm
Specification – Nominal Wattage:
18W/24W, 24W/40W, 63W/83W
Specification – InputVoltage:
AC 120-277V, 120-347V
Specification – Lumen Delivered:
2340 lm, 3120 lm, 5200 lm, 8190 lm, 11050 lm
Specification – Nominal Efficacy:
130 lm/w
Specification – CCT:
3000K/3500K/4000K/5000K
Specification – CRI:
>80
Specification – Power Factor:
>0.9
Specification – Dimming:
0-10V
Specification – Operating Temperature:
: -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Specification – Warranty:
5 Years
Specification Products:
HG-L206-182F, HG-L206-244F, HG-L206-638F, HG-L206-858F
