Description
Product Model:
E2102
Title:
TROFFERS AND PANELS
Description:

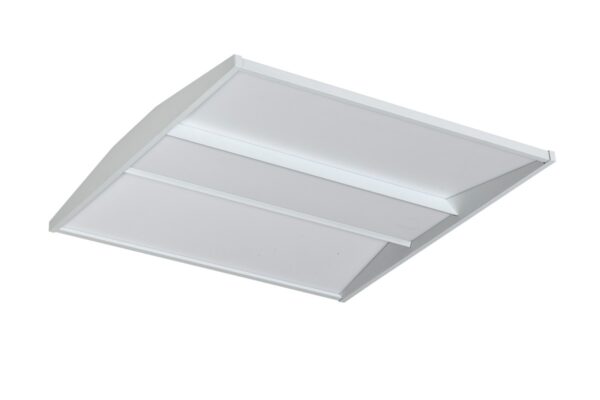

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.
Product Category:
TROFFERS
Size:
2’x2′, 2’x4′
Watts(W):
24W/35W/40W, 30W/35W/40W/50W
Lumen(lm):
4600 lm-5750 lm
CCT(K):
3000K/3500K/4000K/5000K
Qualifications:
DLC Standard/DLC Premium.
ETL/CETL List
Design and Installation – Feactures:
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Design and Installation – Controls Features:
- Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Design and Installation – Accessories:
SENSOR control, Emergency kits, suspension kits.
Specification – Size:
603x603x50mm, 1213x603x50mm
Specification – Nominal Wattage:
24W/35W/40W, 30W/35W/40W/50W
Specification – InputVoltage:
AC 120-277V, 120-347V
Specification – Lumen Delivered:
4600 lm, 5750 lm
Specification – Nominal Efficacy:
115 lm/w
Specification – CCT:
3000K/3500K/4000K/5000K
Specification – CRI:
>80
Specification – Power Factor:
>0.9
Specification – Dimming:
0-10V
Specification – Operating Temperature:
-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Specification – Warranty:
5 Years
Specification Products:
E2102-22, E2102-24
